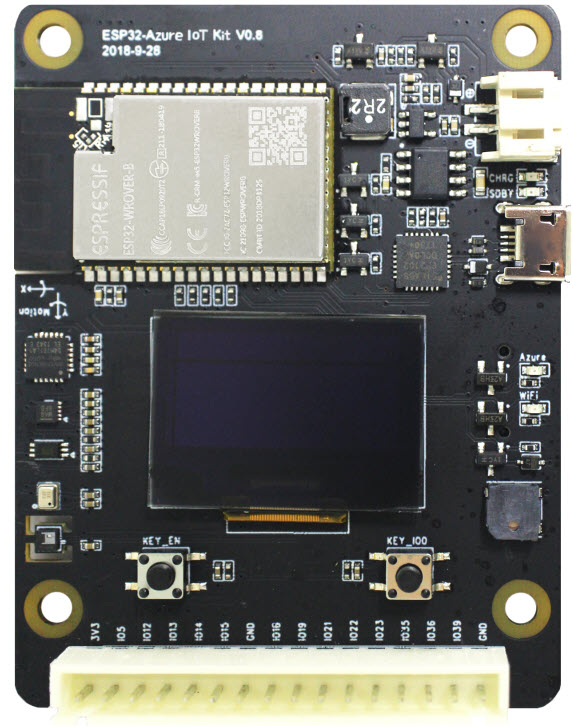

ESP32-Azure IoT Kit


 Zoom


Short description:
Debug board with ESP-WROWER module, the board contains: 0.96 I2C OLED LCD, I / O Connector, HTS221 humidity and temperature sensor, MPU6050 accelerometer and gyroscope, MAG3110 magnetometer, FBM320 barometer, BH1750FVI light sensor

Documentation:
esp32-azure_iot_kit.pdf

Price: Contact us

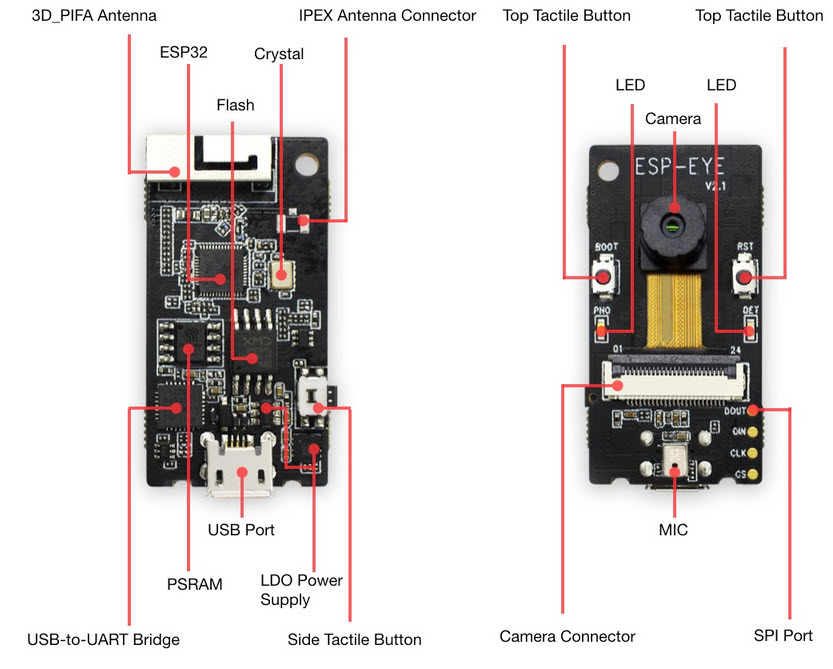

ESP-EYE


 Zoom


Short description:
ESP-EYE ESP32 debug board with OV2640 camera 2 megapixels, 4Mb Flash, 8 MB SPI Pseudo static RAM (PSRAM), microphone.

Documentation:
ESP-EYE_Getting_Started_Guide.md

Price: Contact us

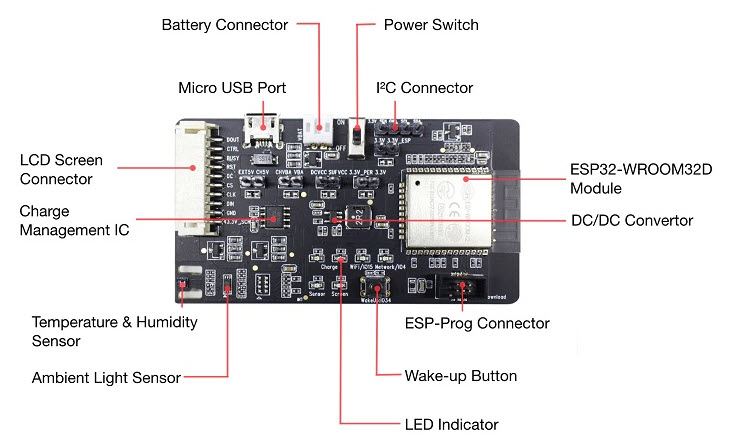

ESP32-MeshKit-Sense


 Zoom


Short description:
Debug board with ESP-WROWER module, the board contains: 0.96 I2C OLED LCD, I / O Connector, HTS221 humidity and temperature sensor, MPU6050 accelerometer and gyroscope, MAG3110 magnetometer, FBM320 barometer, BH1750FVI light sensor

Documentation:
ESP32-MeshKit-Sense_guide_en.md

Price: Contact us

ESP32-WROOM-32D(M113DH2800PH3Q0)


 Zoom


Short description:
WiFi module on ESP32 16Mb Flash, IEEE802.00b / g / n, Client / AP, P2P, WEP / WPA2, TCP / IP, 3 UART, 34 GPIO, SD card, 4 SPI, SDIO, 2 I2C, 16 LED PWM, Motor PWM, 2 I2S, IR, 10 capacitive touch sensor, 18 12-bit ADC, 2 8bit DAC, Ethernet, CAN 2.0, Bluetooth v4.2 BR / EDR + BLE, OCPU Xtensa Dual-Core LX6 240MHz, 520K SRAM, 448K ROM version with integrated antenna

Documentation:
wroom32du.pdf

Price: Contact us

ESP32-WROOM-32D(M113DH6400PH3Q0)


 Zoom


Short description:
WiFi module on ESP32 8Mb Flash, IEEE802.00b / g / n, Client / AP, P2P, WEP / WPA2, TCP / IP, 3 UART, 34 GPIO, SD card, 4 SPI, SDIO, 2 I2C, 16 LED PWM, Motor PWM, 2 I2S, IR, 10 capacitive touch sensor, 18 12-bit ADC, 2 8bit DAC, Ethernet, CAN 2.0, Bluetooth v4.2 BR / EDR + BLE, OCPU Xtensa Dual-Core LX6 240MHz, 520K SRAM, 448K ROM version with integrated antenna

Documentation:
wroom32du.pdf

Price: Contact us

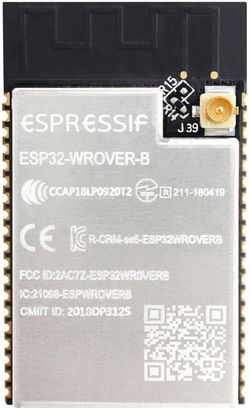

ESP32-WROVER-B (IPEX 16MB)


 Zoom


Short description:
WiFi Modules (802.11), 3.3V ESP32-DOWD, 16Mb Flash, IPEX

Documentation:
esp32-wrover-b_datasheet_en.pdf

Price: Contact us

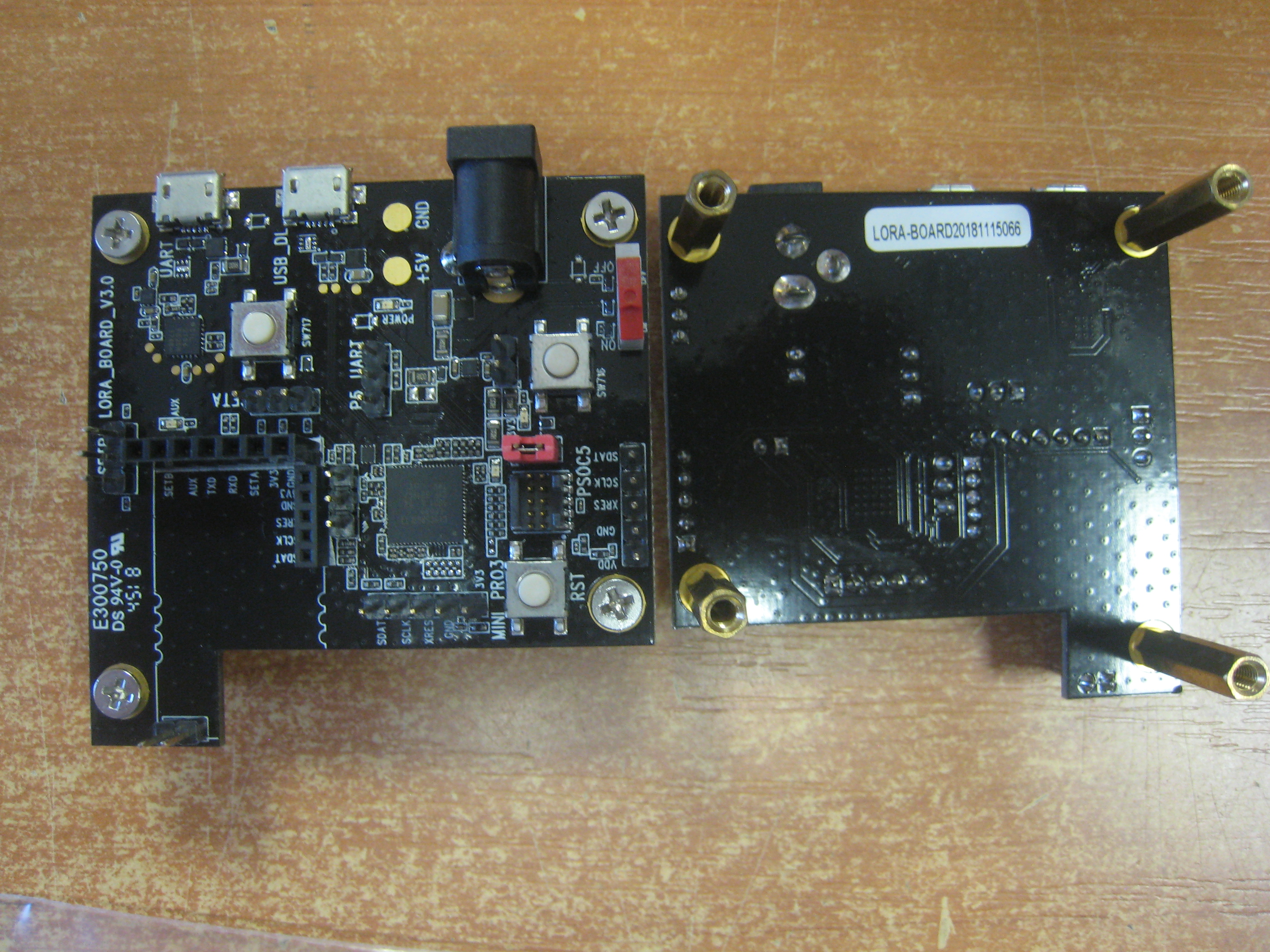

RFM6501W-433S2


 Zoom


Short description:
Demo board for studying ASR6501. For full-fledged operation, it is necessary to independently manufacture an adapter with a module using the following components: RFM6501-CONV + RFM6501W-433S2 or RFM6501W-868S2 + LJQ325 + AP01-433W or JCG410 + installation PLC pins.

Documentation:
asr6501_demo.pdf

Price: Contact us

RFM6501W-868S2


 Zoom


Short description:
Demo board for studying ASR6501. For full-fledged operation, it is necessary to independently manufacture an adapter with a module using the following components: RFM6501-CONV + RFM6501W-433S2 or RFM6501W-868S2 + LJQ325 + AP01-433W or JCG410 + installation PLC pins.

Documentation:
asr6501_demo.pdf

Price: Contact us

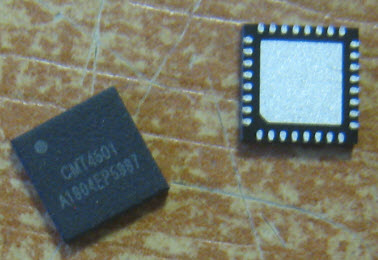

CMT4501-EQR-SB


 Zoom


Short description:
Bluetooth 4.0 Low Energy with integrated Cortex Т -M0 + controller. Specifications - 512 / 256KB flash, 128KB ROM, 138KB SRAM, 33 GPIO, 6 x PWM, 4 x I2S, 2 x I2C, 2 x SPI, 2 x PDM, 1 x UART, 2 x QDEC, 8 x 12-bit ADC , DMA, RTC

Documentation:
cmt4501.pdf

Price: Contact us
