C0802A0SBY6B-A0


 Zoom



Short description:
symbolic LCD display, 8 characters 2 lines of, STN /Yellow-Green/Transflective/Positive, dimensions 58х32х13 mm, visible area 38х16, no cyrillic characters

Documentation:
C0802A.pdf

Price: Contact us

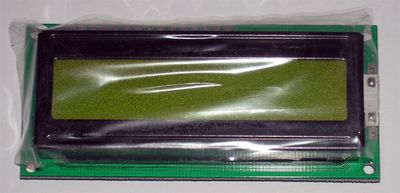

GFC016001E002


 Zoom



Short description:
symbolic LCD display, 16 characters 1 line, STN /Yellow-Green/Transflective/Positive, interface 8 Bit or 4Bit MPU, backlight yellow-green

Price: Contact us

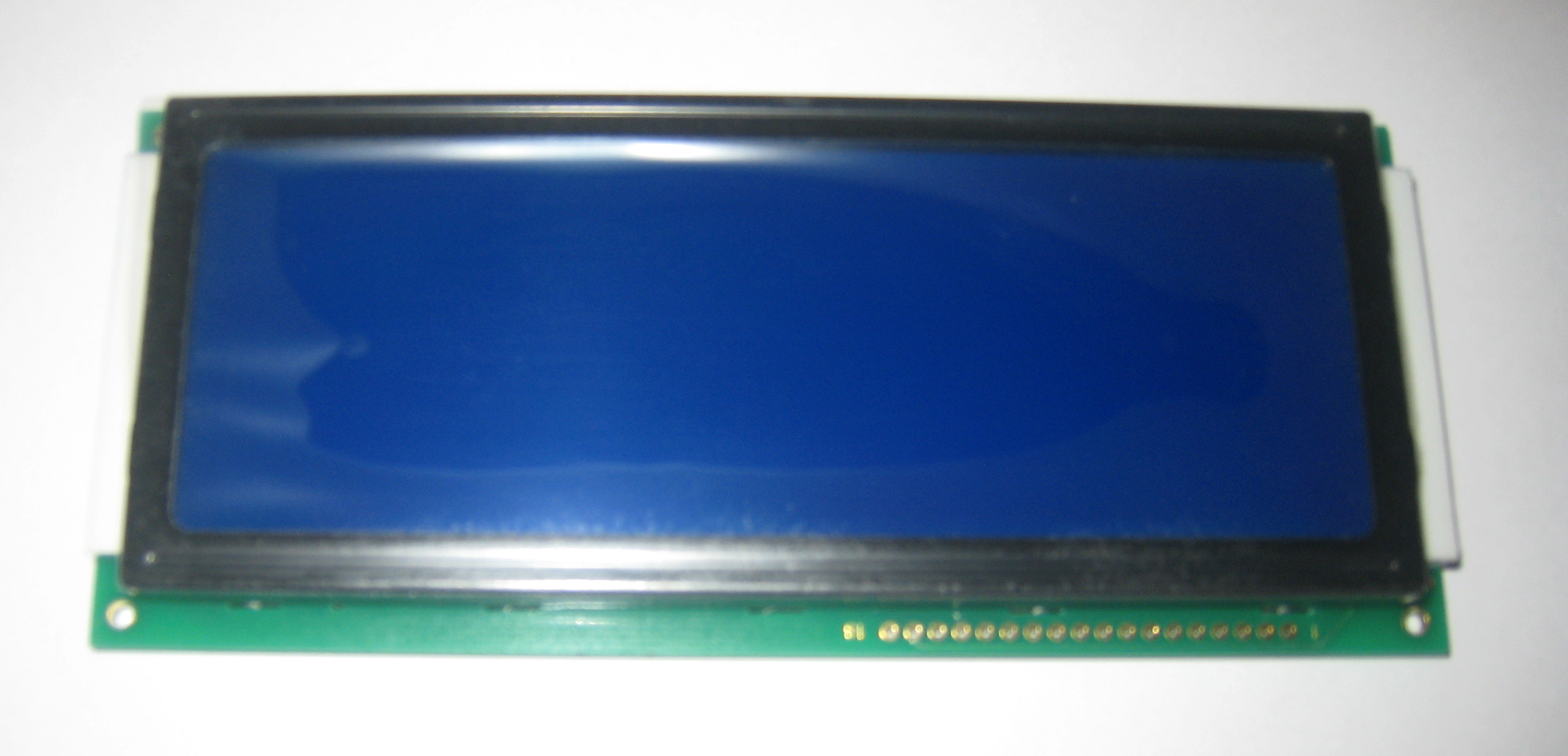

EC20041SGW6B-A3


 Zoom



Short description:
LCD analog AC204A, dimensions 98.0х60.0х13.6, 4 lines of 20 characters, character size 4.75х2.95, STN blue background, lumen 6 hours, white LED 4В backlight, extended temperature range

Price: Contact us

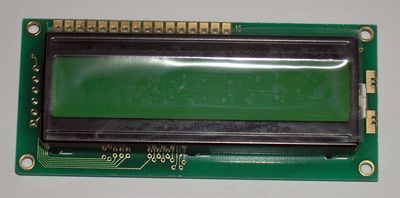

SSC1C16DLYY-03


 Zoom



Short description:
LCD analog AC161AYILY75H-AR, 1 line 16 characters, dimensions 80.0x36.0x9.5, visible area 65.0x13.8, character size 3.07x6.56, STN, Yelow/Green, without backlight

Documentation:
LCD_BSC_SSC.pdf

Price: Contact us

SSC2B16DLYY-03


 Zoom



Short description:
LCD 2 lines of 16 characters, dimensions 80.0x36.0x9.0, visible area 65.0x16.0, character size 2.78x4.89, STN, Grey, LED backlight

Documentation:
SSC2B16DLYY.pdf

Price: Contact us

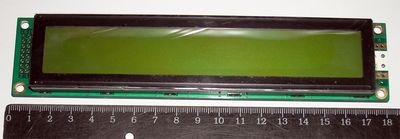

BSC2A20DLYY-03


 Zoom



Short description:
LCD analog AC202BYJLY71H-AR, 2 lines of 20 characters, dimensions 180.0x40.0x10.5, visible area 149.0x23.0, character size 6.00x9.66, STN, Yelow/Green, LED backlight

Documentation:
LCD_BSC_SSC.pdf

Price: Contact us

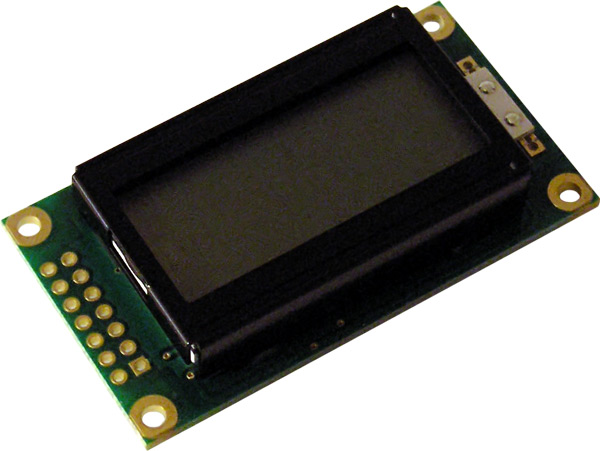

RC0802A-BLW-CSX


 Zoom



Short description:
LCD analog AC082A, dimensions 58.0х32.0х13.5, 2 lines of 8 characters, character size 5.56х2.96, STN blue, negative, on lumen, 12 hours, white LED 5В backlight, extended temperature range

Documentation:
RC0802A.pdf

Price: Contact us

RC0802A-GHB-CSXE


 Zoom



Short description:
LCD analog AC082A, dimensions 58.0х32.0х13.5, 2 lines of 8 characters, character size 5.56х2.96, STN, positive, lumen, 6 hours,background grey, BLUE LED 5В backlight, extended temperature range

Documentation:
RC0802A.pdf

Price: Contact us

RC0802A-GKY-CSX


 Zoom



Short description:
LCD analog AC082A, dimensions 58.0х32.0х13.5, 2 lines of 8 characters, character size 5.56х2.96, STN grey, reflection-lumen 12 hours, yellow-green LED 5В backlight, extended temperature range

Documentation:
RC0802A.pdf

Price: Contact us

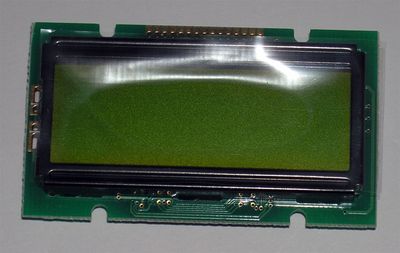

RC1202A-YGN-CSX


 Zoom



Short description:
LCD dimensions 55.7х32.0х9.7, 2 lines of 12 characters, character size 5.50х2.65, STN yellow-green, reflection 6 hours, without backlight, extended temperature range

Documentation:
RC1202A.pdf

Price: Contact us

RC1202A-YHY-CSX


 Zoom



Short description:
LCD dimensions 55.7х32.0х9.7, 2 lines of 12 characters, character size 5.50х2.65, STN yellow-green, reflection-lumen 6 hours, yellow-green LED 5В backlight, extended temperature range

Documentation:
RC1202A.pdf

Price: Contact us

RC1601A-YHY-CSX


 Zoom



Short description:
LCD analog AC161A, dimensions 80.0х36.0х13.5, 1 line 16 characters, character size 6.56х3.07, STN yellow-green, reflection-lumen 6 hours, yellow-green LED 5В backlight, extended temperature range

Documentation:
RC1601A.pdf

Price: Contact us

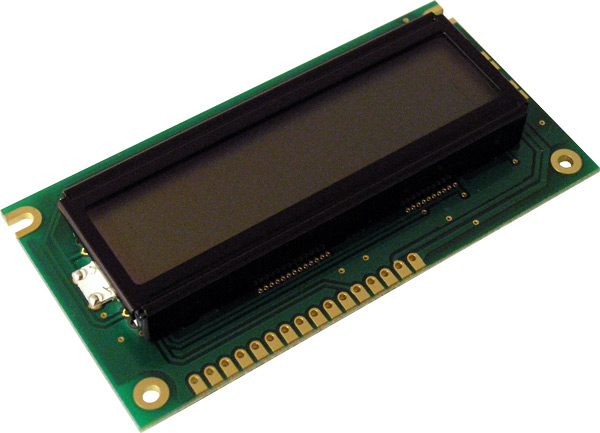

RC1602A-GGN-CSX


 Zoom



Short description:
LCD analog AC162D, dimensions 84.0х44.0х9.7, 2 lines of 16 characters, character size 5.55х2.95, STN grey, reflection 6 hours, extended temperature range

Documentation:
RC1602A.pdf

Price: Contact us

RC1602A-GHY-CSX


 Zoom



Short description:
LCD analog AC162D, dimensions 84.0х44.0х13.2, 2 lines of 16 characters, character size 5.55х2.95, STN grey, reflection-lumen 6 hours, yellow-green LED 5В backlight, extended temperature range

Documentation:
RC1602A.pdf

Price: Contact us

RC1602B-GKY-CSX


 Zoom



Short description:
LCD analog AC162B, dimensions 80.0х36.0х13.2, 2 lines of 16 characters, character size 5.56х2.95, STN grey, reflection-lumen 12 hours, yellow-green LED 5В backlight, extended temperature range

Documentation:
RC1602B.pdf

Price: Contact us
